API Pneumatic Bop Testing Unit with Pressure Recorder
Description
Basic Info
Model NO. | QST140-J |
After-sales Service | Online Support |
Warranty | 1 Year |
Manufacturing Process | / |
Surface Treatment | / |
Operation Pressure | / |
Material | / |
Name | Qst140-J Pneumatic Bop Testing Unit with Pressure |
MOQ | 1set |
Quality | High Level |
Transport Package | Wooden Carton / Iron Carton |
Specification | QST140-J |
Trademark | LK |
Origin | China |
HS Code | 84314310 |
Production Capacity | 50000PCS/Month |
Product Description

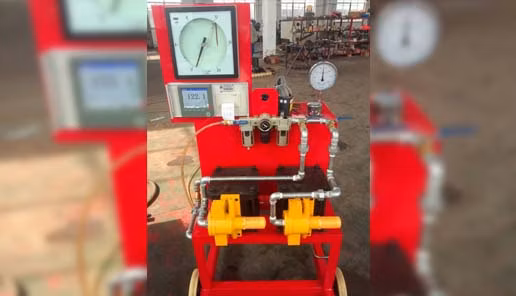

QST140-J Pneumatic BOP Testing Unit with Pressure Recorder
Product Description
BOP Testing Unit, also called pressure test pump which is recommended for high pressure testing of BOP stacks, choke and kill lines, Christmas trees and any other type of equipment requiring high pressure static testing. Test Units are available in unit-mounted, portable, skid-mounted and high flow electric driven styles. Accessories include stand-mounted chart recorders and high pressure hose assemblies. High Pressure Test Units are provided in working pressure ranges from 5,000 to 20,000 PSI.
Accessories of pressure test unit, including stand-mounted chart recorders and high pressure BOP Accumulator Units, meet the design specification specified in API 16D. Customized pressure test pump is available to assure reliable control of the BOP stack with adequate reserve for continuous operation under emergency conditions.
BOP Testing Unit
- Running stability, small size, light weight, low noise, easy maintenance and high efficiency.
- Can be controlled locally and remotely, and monitor, record, print and track the recording value.
- Can be used both in factory and in the field installed on a vehicle.
- In accordance with API 16D.
- Three type of pump: Electric, Pneumatic and Electro-Pneumatic.
Model | Pneumatic pump | Rated input pressure (Mpa) | Working pressure (Mpa) | Volume of oil tank(L) | Rated explosion pressure (Mpa) | Automatic recorder (set) | ||||
1:30 | 1:100 | 1:60 | 1:200 | 1:225 | ||||||
QT21 | 1 | 0.7 | 21 | 45 | ||||||
QT21-J | 1 | 0.7 | 21 | 45 | 1 | |||||
QT35 | 1or1 | 0.58 | 35 | 100 | ||||||
QT35-J | 1or1 | 0.58 | 35 | 100 | 1 | |||||
QT70 | 1 | 1 | 0.7 | 70 | 100 | 84 | ||||
QT70-J | 1 | 1 | 0.7 | 70 | 100 | 84 | 1 | |||
QT140 | 1 | 1 | 0.7 | 140 | 100 | 168 | ||||
QT140-J | 1 | 1 | 0.7 | 140 | 100 | 168 | 1 | |||
QT140A | 2 | 2 | 0.7 | 140 | 100 | 168 | ||||
QT140A-J | 2 | 2 | 0.7 | 140 | 100 | 168 | 1 | |||
QT140B | 1 | 1 | 0.7 | 140 | 168 | |||||
QT140B-J | 1 | 1 | 0.7 | 140 | 168 | 1 | ||||
QT140C | 1 | 1 | 0.7 | 140 | 100 | 168 | ||||
QT140C-J | 1 | 1 | 0.7 | 140 | 100 | 168 | 1 | |||
QT200 | 1 | 1 | 0.9 | 200 | 100 | 225 | ||||
QT200-J | 1 | 1 | 0.9 | 200 | 100 | 225 | 1 | |||
QT200A | 2 | 2 | 0.9 | 200 | 100 | 225 | ||||
QT200A-J | 2 | 2 | 0.9 | 200 | 100 | 225 | 1 |
Quality Control
Company InformationLake Petro company is a professional supplier of various oilfield equipment, including oil drilling and service equipment,oil production equipment,OCTG ,wellhead & downhole tools and spare parts with API certification. Following the principle of "quality first, science and technology innovated, people oriented", every Lake Petro person is sparing no effort to provide the customers with best products and services. Through efforts of Lake Petro staff, our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). With super quality, reasonable price and professional service, Lake Petro company has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.
FAQHow to order?
Please send us your inquiry with detail item description or with Model number.
If there is no packing demand we take it as our regular exported standard packing.
We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
You send us your detail requirement, we provide quotation to you.
Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.
The information you may like to know before Payment:
1. Methods of Payment:
T/T (Telegraphic Transfer) or L/C at sight
2. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
3. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
How to contact?Attn: Julia Zhou
